Orbit Industrial B & D

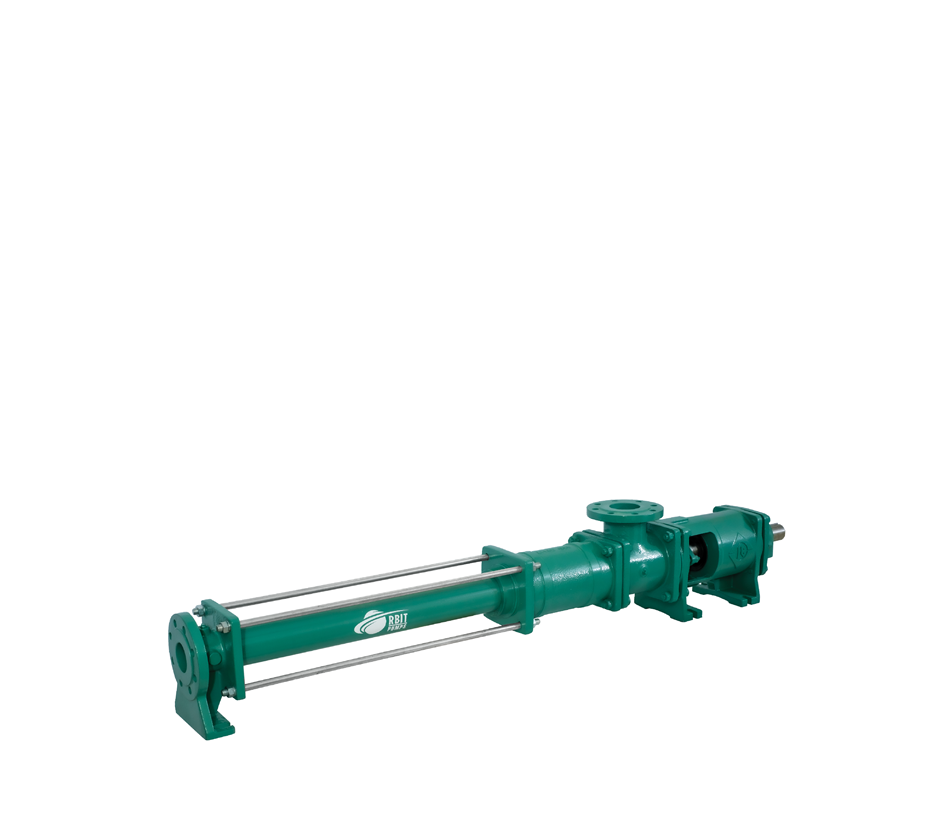

Franklin Electric’s industrial helical rotor pumps offer excellent suction capabilities across a broad range of applications, from water and wastewater to mining and chemicals.

Select-A-Pump Pump sizing system
Specifications
Downloads

  • Performance

    • Flow rates up to 160m3/h
    • Pressures up to 80 bar

    Features

    • Excellent suction capabilities - inherently self-priming
    • Good solids handling capabilities including fibrous materials
    • Reversible - pumps in either direction with equal efficiency
    • Capacity is proportional to speed
    • Pressure is independent of speed
    • No valves
    • Loose seal/gland arrangement
    • Gentle handling of shear-sensitive products
    • Ability to handle viscous products of over 1-million centipoise
    • Solid or hollow shaft option
    • Pulse-free flow
    • Simple and robust construction
    • Ability to handle products with a large percentage of entrained gas.

    Applications

    • Agriculture
    • Brewing & beverages
    • Building & construction
    • Ceramics
    • Chemicals
    • Mining
    • Paper & pulp
    • Pharmaceuticals & cosmetics
    • Water & wastewater industry
